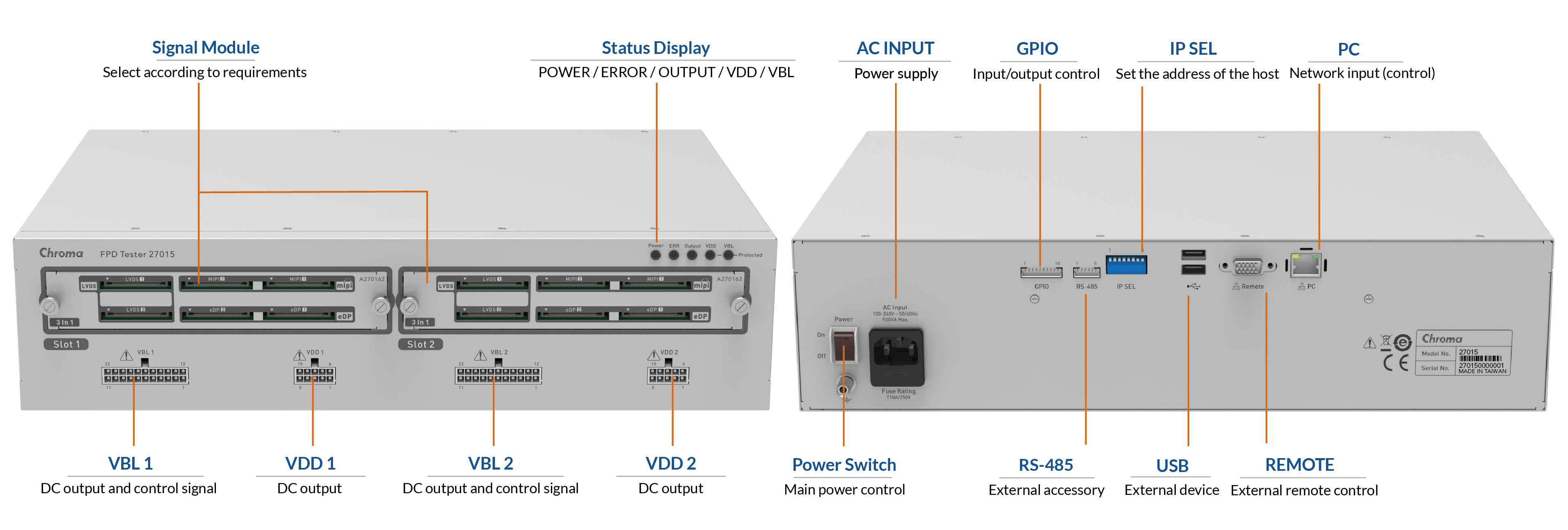

The 27015 has 4 programmable DC power supplies with a maximum output current of up to 150W (VBL) / 45W (VDD), with a maximum voltage and current of 55V / 15V and 10A / 3A, respectively. With the FPD Master software, the voltage can be adjusted in 0.01V increments, providing stable and continuous DC voltage output. This allows users to customize the power supply for their specific applications, fully satisfying the power requirements of a wide range of TVs and monitors.

Chroma 27015 provides OVP (Over Voltage Protection), OCP (Over Current Protection), UVP (Under Voltage Protection), and UCP (Under Current Protection). You can set your own protection parameters; if the current or voltage of the DUT is detected to exceed the set value during the output process, the protection mechanism will be activated immediately to avoid product damage.

The Protection Time Delay function ensures test accuracy by preventing the inrush current generated by the DUT’s power supply from triggering the protection mechanism.

The Chroma 27015 Flat Panel Display Tester is equipped with an embedded multimedia card (eMMC) that can store anywhere from 341 to 1365 BMP image files, depending on the image resolution, with a maximum resolution of 8K. In addition to using the built-in images, users can also add their own test images to meet a variety of testing needs.

*Depending on module resolution

When pairing the 27015 Flat Panel Display Tester with the 71241 High Accuracy Universal Measurement Probe or the 71242 Small-Size Measurement Probe, you can use the GO/NOGO software to optimally adjust the Auto Flicker test steps(FMA<3%) in less than 5 seconds.

*Requires adjustment data (PMIC) and panel setting

During production, display panels can develop significant pixel defects as well as bright or dark spots brought on by contaminants like dust, scratches, and other impurities. The 27015 combines GO/NOGO software with the Cursor Position function, which allows you to pinpoint the exact physical coordinates of single pixels/dots and RGB color vector coordinates on the DUT's own display, and record the corresponding data for laser repair machine positioning and restoration.

The 27015 FPD Tester can be supplemented with the 67394 Multi-Channel Power Supply Module to meet various voltage requirements for small to medium size panels. The multiple outputs can be combined with signal and timing control, and the timing can be edited in 1ms increments to suit a variety of production test applications. (optional)
